Bmc:

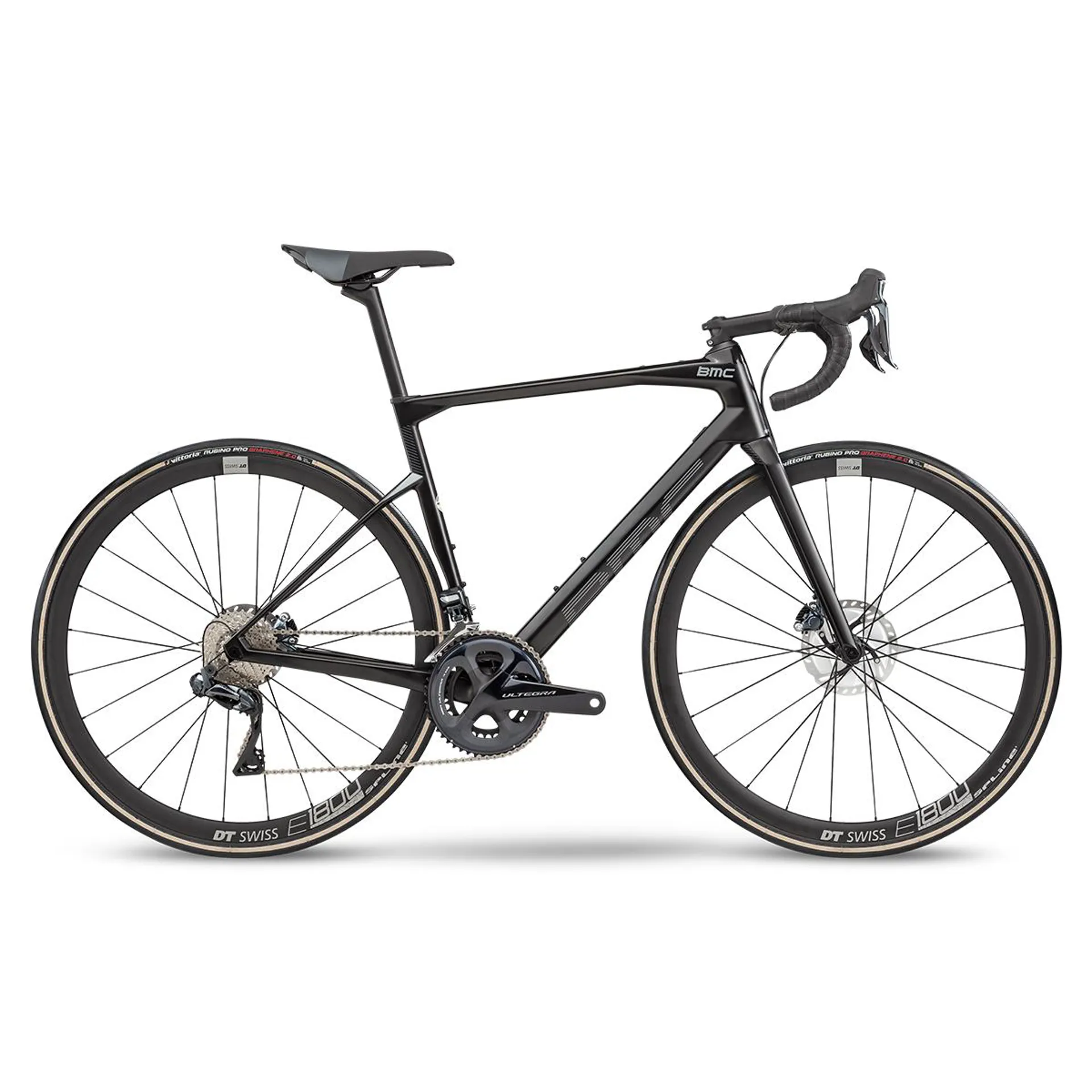

roadmachine
the one-bike collection - re-imagined
meet the roadmachine, but not as you once knew it. Spliced with yet
more speed and less weight, this is the latest iteration of the bike that
truly does it all. Rooted in endurance, we’ve revised the frame and
added more compliance-boosting attributes to make this bike your
all-time favourite roadmate. As our highest performing all-rounder, it’s
designed to go the distance with resolve. After all, what use is a road
without the roadmachine?
Concept
the one-bike collection - re-imagined
roadmachine’s renowned compliance and
versatility blends with the performance dna of
our world-tour winning bikes and lets you ride
further and faster.
Smoother
the endurance-tuned carbon layup has been
developed to enable frame, fork, and seatpost
to work as a system and deliver an incredibly
plush and balanced riding feel on varying road
bike terrain.
The perfect fit for every rider
a carefully selected geometry progression
across frame sizes and a broad collection of
integrated cockpit system stem dimensions
enable the perfect fit for every rider. The finetuned
setup delivers a super-clean look and
optimum performance.
Faster
the roadmachine boasts a lightweight frame
and paramount power transfer. Its performance-
oriented dna makes it an ultra-efficient
ride on a wide range of terrain.
Sleekest
the integrated cockpit system makes the new
roadmachine the most integrated endurance
road bike in the game. The stealth cable routing
creates a uniquely clean look and improved
aerodynamics.
Frameset
frame roadmachine premium carbon frame, tcc endurance
fork roadmachine premium carbon fork, tcc endurance
seatpost roadmachine premium carbon “d” compliance seatpost
frame technology tuned compliance concept (tcc) endurance
sizes 6 sizes: 47 / 51 / 54 / 56 / 58 / 61
frame weight 895g (54cm)**
fork weight 410g (uncut)
seatpost weight 160g (uncut)
integration
frame dti internal cable management
downtube integrated chain catcher
integrated seat clamp
brake integrated front brake mounting hardware
technical details
frame 12 x 142mm thru-axle (shimano standard)
fork 12 x 100mm thru-axle (shimano standard)
disc-specific
seatpost 15mm offset
bottom bracket pf86
brakes flatmount 160/140 (f&r)***
drivetrain braze-on, removable front derailleur mount
replaceable rear derailleur hanger
tires 30mm maximum width (28mm w/ fender)****
misc.
**average sample weight with hardware
***proprietary icf01 flatmount adapter (f) / Shimano flatmount adapter (r)
****tire dimensions based on measured tire width
roadmachine 02 one
- roadmachine, pf86 bottom bracket, flat mount, 12x142mm thru-axle
- premium carbon, tcc endurance
- 47 / 51 / 54 / 56 / 58 / 61
- roadmachine premium carbon, tcc endurance, flat mount, 12x100mm thru-axle
- 2x11
- shimano ultegra, 50-34t
- shimano ultegra, 11-32t
- shimano ultegra
- shimano Ultegra di2
- shimano Ultegra di2
- shimano Ultegra di2, hydraulic
- shimano Ultegra di2, sm-rt800 rotors (160 /140)
- bmc rab 02, ergo top shape, compact bend
- bmc rsm01, w/ computer and camera mount
- roadmachine d-shape carbon, 15mm offset
- selle royal 2075 hrn
- dt swiss e 1800 spline db 32, thru axle
- dt swiss e 1800 spline db 32*
- vittoria rubino, 28mm
- carbon grey
note tubeless ready (rim strip installed, valves included)
