Bmc:
teammachine alr disc
the essence of performance
the teammachine alr disc gives you complete access to performance. From city limit sprints to local crits and all-day alpine raids, the teammachine alr disc is ready for everything.
Concept
the essence of performance
experience undiluted performance with our most advanced aluminium frame to date, an essential expression of the teammachine’s racing soul and iconic design.
An aluminium core with a high-tech twist
the core of the teammachine alr is a premium aluminium frame, which we’ve refined with hydroforming, size-specific tube butting and smooth welding for high stiffness and a low weight.
Choice carbon components deliver the superior ride quality and performance for which the teammachine is renowned.
All-day race compliance
the ace premium carbon fork, the thin, dropped seat stays and the d-shaped seatpost deliver the compliance needed to dampen road vibrations and improve control for a smooth and dynamic ride.
Details
frameset
frame teammachine alr al-13 premium
triple-butted, hydroformed, smoothweld
aluminium, tcc race
fork teammachine slr 02 carbon disc,
tcc race
seatpost teammachine slr02 „d“ carbon
frame technology tuned compliance concept (tcc) race
sizes 5 sizes: 47 / 51 / 54 / 57 / 60
frame weight 1250g (54cm - painted)*
fork weight 405g (excl. Expander)**
seatpost weight 195g***
integration
frame internal cable routing, integrated
seatpost clamp
brake flat mount brakes
technical details
frame premium triple-butted, hydroformed,
smoothweld aluminium 12x142mm
thru-axle
fork teammachine slr 02 carbon disc,
tcc race, flat mount, 12x100mm
thru-axle, tapered steerer 1-1/8“ to 1-1/2“
seatpost teammachine slr02 „d“ carbon,
15mm offset
bottom bracket bsa threaded
brakes flat mount brakes
drivetrain braze-on front derailleur mount
tires 28mm maximum width****
*avg. Frame weight, size 54, lightest finish, incl. Derailleur hangers
**avg. Fork weight, lightest finish, excl. Headset compression device
***avg. Seatpost weight, lightest finish, incl. Clamping hardware
****measured width

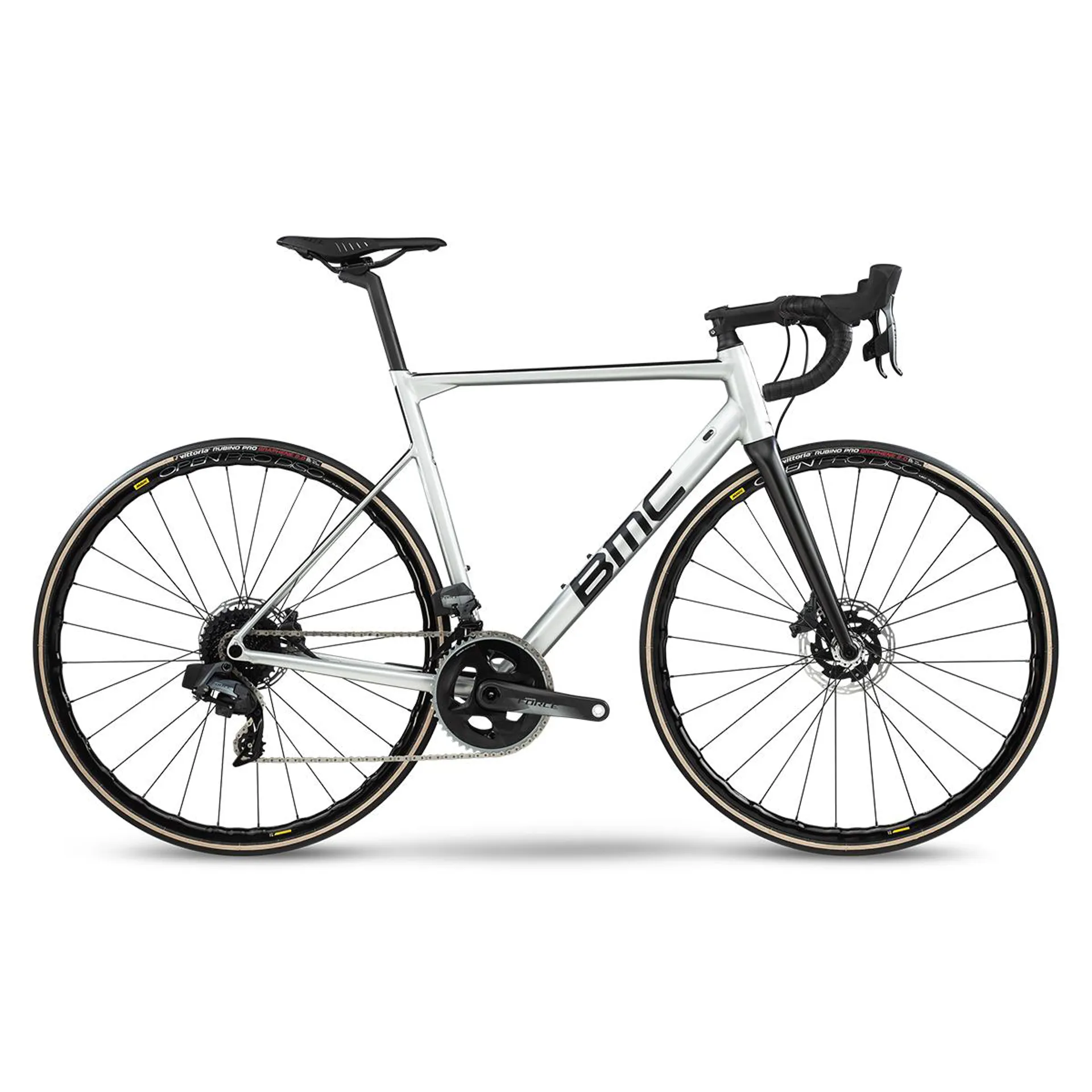

teammachine alr disc one
- teammachine alr, bsa threaded bottom bracket, flat mount, 12x142mm thru-axle
- al-13 premium triple-butted, hydroformed, smoothweld aluminium, tcc race
- 47 / 51 / 54 / 57 / 60
- teammachine slr 02 carbon disc, tcc race, flat mount, 12x100mm thru-axle
- 2x12
- sram force axs 48/35t
- sram force xg-1270, 10-33t
- sram force 12 speed
- sram force etap axs
- sram force etap axs
- sram force etap axs hrd
- sram force etap axs hrd, centerline xr rotors (160/160)
- bmc rab 03, ergo top shape, compact bend
- bmc rsm01
- teammachine slr02 d-shape carbon, 15mm offset
- fizik antares r7 manganese
- cl-712 (f)/rxc-1425 (r), thru axle
- mavic open Pro ust disc
- vittoria rubino pro, 25mm
- brushed
note ust tubeless ready (valves included)
