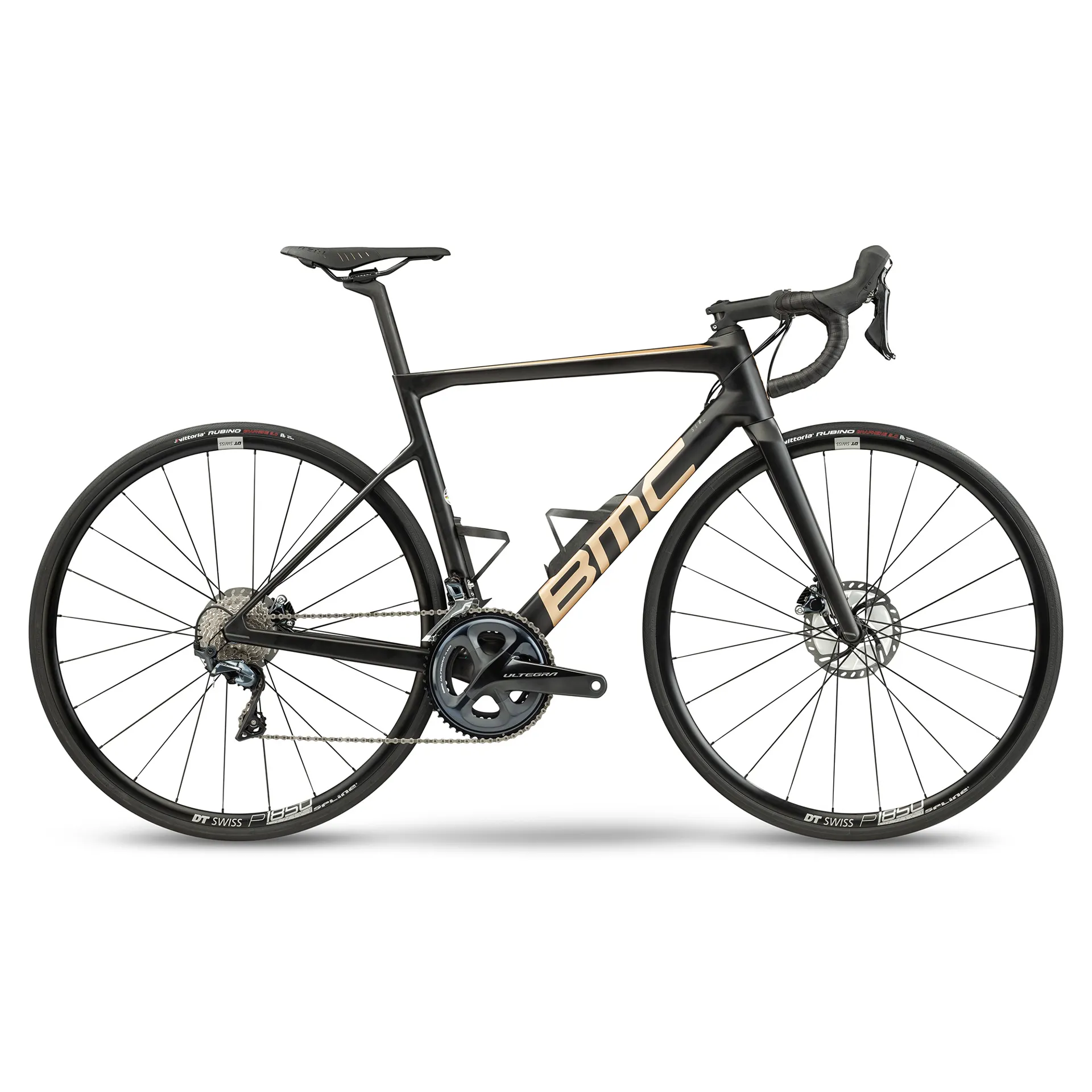

Bmc:
10 years in the lead
10 years ago, we launched a bike that kickstarted a revolution in the design and construction of the performance road bike. The teammachine slr, has won every major title that a bike can win including; monuments, world championships, olympic games and the tour de france.
Using the combined knowledge from the past decade, we’ve changed the game again to deliver an all-new, class-leading frameset ready to lead for another 10 years.
Ace+ the plus to race to the front
our trailblazing design software ace comes with a plus. It not only runs through thousands of virtual prototypes using stiffness, weight and compliance as key influencers, but now includes a fourth key factor: aerodynamics. The result? Ace+ has produced the fastest teammachine slr ever designed.
Ultimate performance through functional integration
a perfect example of functional integration, the new aerocore design utilizes water bottles and bottle cages that complement the tube shapes, for the best aerodynamic performance possible.
Integrated cockpit system (ics)
meet an all-new generation of ics cockpits: ics carbon and ics2, representing a step forward in bike design and functional integration. Ics carbon sports a low-weight, one-piece-design, with high stiffness and stealth cable routing. Ics2 has been optimized with a sleek new design to maintain the iconic ics functionality, with lower weight and improved stiffness, set to become the world’s most adaptable integrated cockpit system.
Integrated cockpit system (ics)
all new ics, with significant weight savings, high stiffness, clean aesthetics and integrated device mounts for the most popular devices.
D-shape seat post
improved seatpost design removing any excess materials, providing aerodynamic benefits and extra compliance.
Tuned compliance concept (tcc) race
fine tuning of the carbon layups, essential vertical frame and seatpost flex, to improve traction and control, resulting in reduced muscle fatigue.
All-new aerocore
our aerocore system consists of two superlight carbon cages that seamlessly integrate into the reshaped downtube and seat tube, resulting in significant drag reduction when used with bottles.
Fork profile
the fork has been aerodynamically reshaped. The stealth dropout design with an integrated thru-axle nut shows that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
Bottom bracket and torsional stiffness
renowned for its power transfer, the new teammachine slr goes one step further with a wider bottom bracket contact area provided by the new downtube shape and the optimized carbon layup.
Specifications
frame: teammachine slr carbon with aerocore design
- integrated aerocore bottle cages
- stealth dropout design
- tcc race compliance level
- pf86 bottom bracket
- integrated seatpost binder
- flat mount disc
- 12x142 mm thru-axle
fork: teammachine slr 01 carbon
- ics technology, stealth cable routing
- tcc race compliance level
- stealth dropout design
- flat mount disc
- 12x100 mm thru-axle
- 48 mm offset (size 47−51), 43 mm offset (size 54−61)
seatpost: teammachine slr carbon d-shape seatpost
handlebar: bmc rab 02, ergo top shape, compact bend
stem: bmc rsm01, w/ computer and camera mount
saddle: fizik antares r7
gears: 2x11
crankset: Shimano ultegra, 52-36t
cassette: Shimano ultegra, 11-30t
chain: Shimano ultegra
front derailleur: Shimano ultegra
rear derailleur: Shimano ultegra
shifters: Shimano ultegra, hydraulic
brakes: Shimano ultegra
rims: DT swiss p 1850 spline db 23
hubs (f/r): DT swiss p 1850 spline db 23
tires: vittoria rubino, 25 mm
sizes: 47, 51, 54, 56, 58, 61
colour: carbon & gold
weight: 7.8 kg / 17.19 lb
tire clearance: 30 mm
astm classification: level 1
weight limit: 110 kg / 242 lb
additional equipment:
- aerocore bottle cages
- integrated computer mount
- tubeless ready (rim strip installed & valves included)
